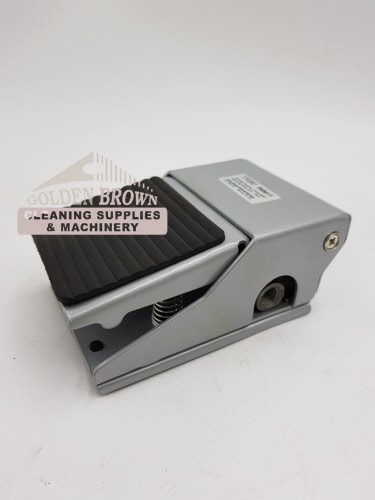

S32 PW4 Foot Pedal Control Valve 2 Position 4 Port 1/4" NPT Air Pneumatic Switch
Dimensional Diagram
All dimensions in inches.
Product description
This foot operated air valve is ideally suited to control 2 port pneumatic cylinders, allowing pressurized extension and retraction or bi-directional pneumatic motors allowing control in forward and reverse. It may also be used for simple on-off or off-on control of an air source by only using one of the output ports.
Port Description
IN: Pressure Source
OUT: Output at Rest
OUT 2: Output, Pedal Depressed
1/8" Not Marked: Exhaust
Made In: USA
Port Function
Rest (Pedal Up): IN connected to OUT 2, OUT 1 Exhausted
Pedal Depressed: IN connected to OUT 1, OUT 2 Exhauste
