Topcon Model RL-H4C DB
Topcon Model RL-H4C DB (Alkaline) Rotating Laser Level
Topcon Model Rotating Laser Level:
Model: RL-H4C DB
Rotation speed: 600rpm
Laser Power: 2.4mW
Laser Class: Laser safety CDRH(FDA) IIIa JIS/IEC 3R
Water Proof / Dust-Resistant: IP66
Revolutions per minute: High performance - 2500rpm
Size: 177(L) × 195.6(W) × 216.5 (H)mm
Made in Japan
Condition: Brand New
5 Year Manufacturer Warranty
All of these features make the RL-H4C more than twice the laser offered by anyone else.

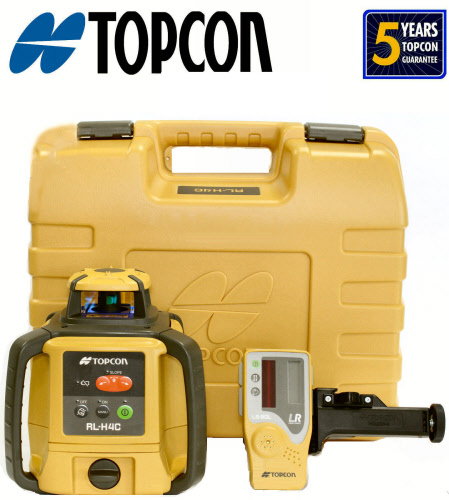

RL-H4C DB Package:
RL-H4C DB (Alkaline battery package with four D cells)
RL-H4C Laser
LS-80L Laser Sensor
AA size Dry Cell batteries for LS
Sensor Holder 6
Carry Plastic Case
FEATURES:
Simple, intuitive manual slope match capability with automatic cross axis self-leveling
Fast, automatic self-leveling
Ruggedized construction with dual handles and IP66 water-resistant housing
NEW LS-80L Long-Distance laser sensor
Automatic height of instrument alert (HI alert)
Optimally focused beam provides long 2,600ft. (800m) operating radius
Machine control compatible
10 arc second accuracy
Universal rod clamp for LS series sensor
New ruggedized carrying case that fits standard package plus extra LS sensor and LS-B10 machine mounted laser sensor (not included)
SPECIFICATIONS:
Accuracy: Horizontal +/1 1
Self-leveling Range: Horizontal +/- 5 Degree
Working Area - diameter: 800m
Rotation speed: 600rpm
Light Source: Visible laser 635 Nm
Laser Power: 2.4mW
Operating time (4D-CELL Alkaline): 100hr
Operating temperature: -20C to 50C
Dimensions (L x W x H): 177mm x 195.6mm x 216.5mm
TOPCON RL-H4C DB (P.N. 57177)
Brand new Topcon RL-H4C DB Laser Level System LS-80L receiver, Holder 6 rod mount, carrying case, all batteries, DB-74 battery door, owner's manual, BRH/OSHA materials (OP Card & Job Signage), 5 year warranty card. The main features of this laser are a visible beam, 5% slope match, 2600 foot range, dual sided 11 channel detector, +/- 1/16" accuracy @ 100 feet, and 100 hour run time on a set of batteries. This laser comes with a full five year factory warranty and is calibrated for immediate job site use.
Topcon's RL-H4C auto-leveling laser combines precision, versatility and value in one job site tough package. Its super fast, self-leveling motors are accurate to +/-10 arc seconds, meaning whether you′re checking grade, or setting batter boards, you′re going to be accurate the first time. Its high-power 2.4mW diode provides a 2,600ft. (800m) diameter working radius, making it a great reference for machine mounted receivers or rod mounted receivers. The 635nm visible beam means it can even be used for interior alignment applications. All of these features make the RL-H4C more than twice the laser offered by anyone else.
Unique combination of features and technology that are proven to meet the demands of contractors more than any other alignment lasers on the market.
