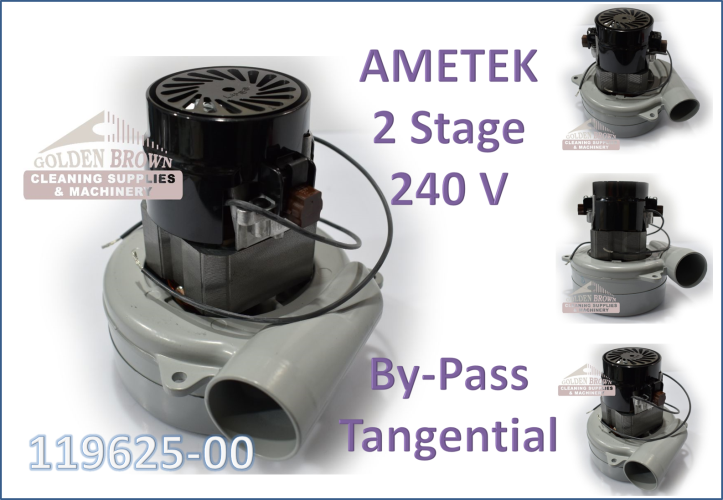

Vacuum Motor 2 Stage Ametek 240V Bypass Tangential 119625-00

119625-00
Add to cart
  • Description

S32 VM4 Motor 2 Stage Ametek, 240 Volt, 1100 W, Tangential Bypass, 145 mm F.B Suit Carpet Extractor (Ref 119625-00) Shanghai

AMETEK Vacuum Motor
S32 VM4 Motor 2 Stage Ametek, 240 Volt, 1100 W, Tangential Bypass, 145mm F.B Suit Carpet Extractor (Ref 119625-00) Shanghai

PRODUCTS SPECIFICATION:

  • Part Number:     119625-00
  • Power:                 1100W
  • Manufacture :   Shanghai Ametek 2 Stage Tangential
  • Height :              170mm
  • Base Height :     71mm
  • Diameter :         145mm

Vacuum Motor

Single vacuum motor
SHANGHAI AMETEK
Two Stage Tangential 240V 1100Watt (3.5amp)
Replace when needed
183mm Fan Base
Original Motor Number 119625

Motor 2 Stage Ametek, 240V, 1100W, Tangential Bypass Vacuum, 145mm F.B
Motor 2 Stage Ametek, 240V, 1100W, Tangential Bypass Vacuum, 145mm F.B

Vacuum Cleaner Motor Ametek 240 Volt, 1100 Watts 2 Stage Tangential Bypass 'Lamb' …

Two Stage

Double stage tangential type. Suits many ducted vacuum cleaner systems.…

Motor 2 Stage Ametek, 240V, 1100W, Tangential Bypass Vacuum, 145mm F.B
Motor 2 Stage Ametek, 240V, 1100W, Tangential Bypass Vacuum, 145mm F.B

Size

Total height - 170 mm, fan height - 75 mm, diameter 145 mm, internal diameter of outlet - 42.8 mm.…

TO SUIT DUCTED SYSTEMS:

  • Valet: V1S, V1P, V3P, V115, VB150
  • AussieVac: AV1100, AV2400
  • Electron (EVS): EDP2404
  • Premier Clean: Monarch 490, Premier 490 / Bagless 490
  • Lux: CD101DSC
  • DasVac DV1

Motor 2 Stage Ametek, 240V, 1100W, Tangential Bypass Vacuum, 145mm F.B

REPLACE MODEL

Part No. 119625, 119625-00, Replaces 116355, 116355-00.

AMETEK MOTOR

Made by Ametek in China Shanghai.
